Triple R

SE series

View datasheet

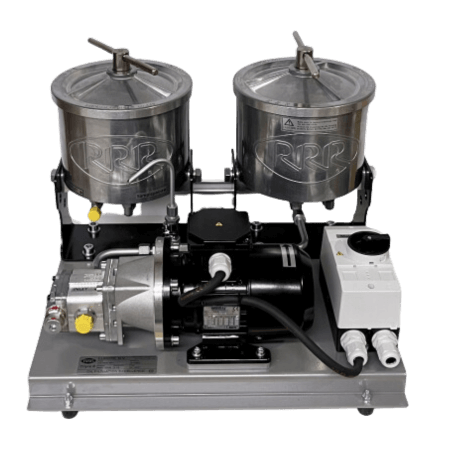

  • Triple R SE200e-BH

    SE200e-BH

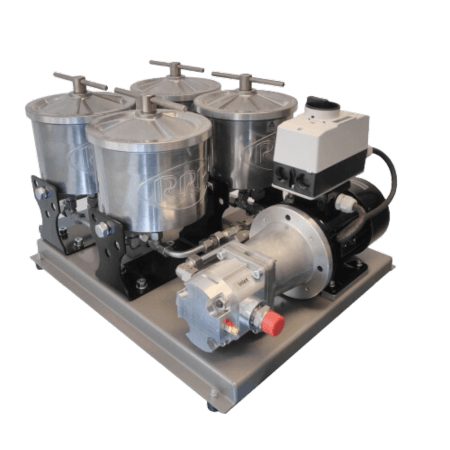

  • Triple R SE400e-bh

    SE400e-bh

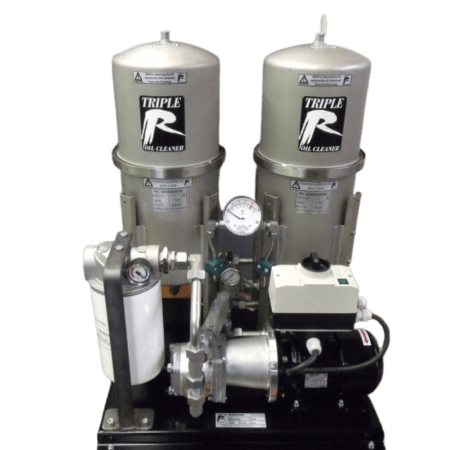

  • Triple R SE600-sU103-2r

    SE600-sU103-2r

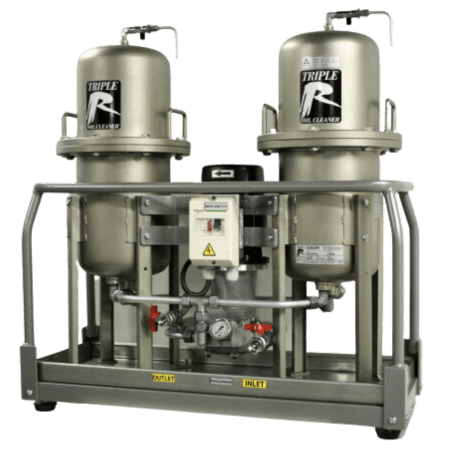

  • Triple R SE600-ss103-2r

    SE600-ss103-2r

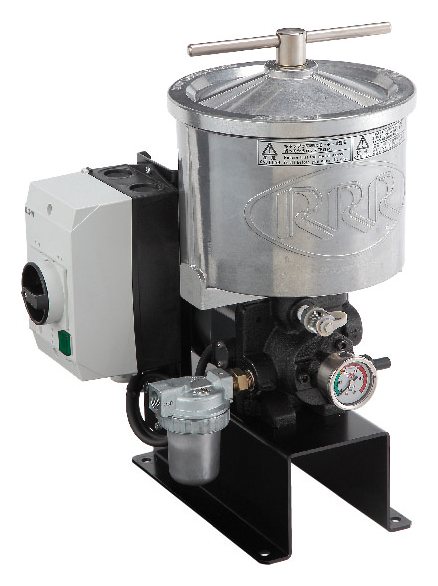

  • Triple R SE100-ST off-line oil cleaner, compact unit with motor and pressure gauge

    SE100-ST

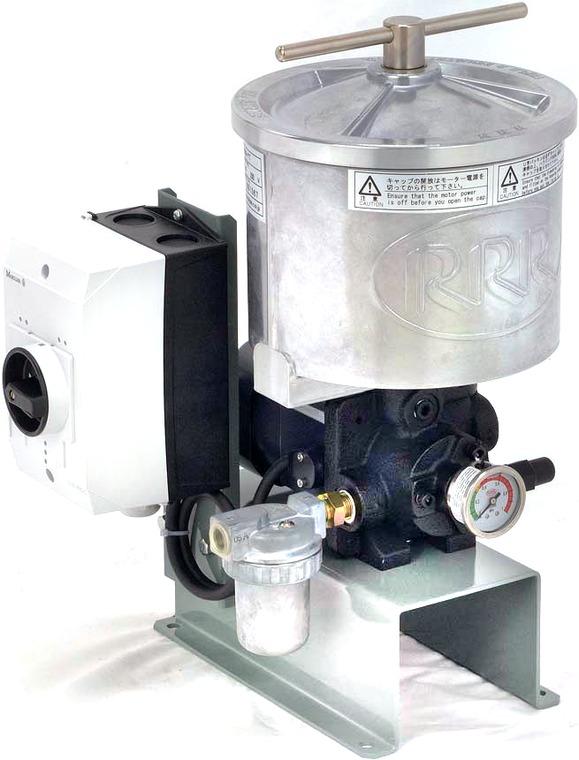

  • Triple R SS100-ST off-line oil cleaner on a mounting bracket

    SS100-ST

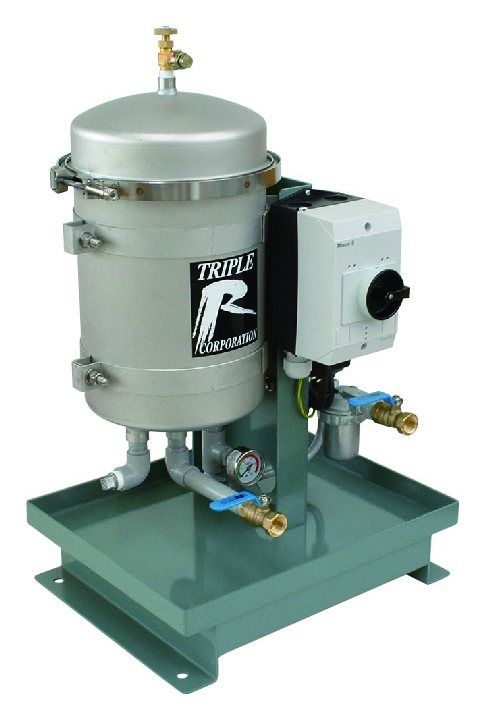

  • Triple R SU102-ST off-line oil cleaner, larger unit mounted on a drip tray

    SU102-ST

Main specifications

Item codesModelDimension (mm)Weight (Dry)
SE1000039SE100-STW282xL283xH42014.0kg
SE1000042SS100-STW282xL283xH42015.5kg
SE1000042SU102-STW418xL330xH66725.0kg

  1. Compact off-line bypass oil cleaners, in all sizes and with different flow rate. Check the datasheet to select a model for purifying your oil tank.

  2. Built around a very compact power pack, they can easily be connected to any oil reservoir.

  3. The standard versions are fully equipped with an switch box with thermo-protection, a sampling port (very convenient to take oil samples on a regular basis). All units have a mounting bracket for quick installation and a pressure gauge to check the element contamination level. A suction strainer or a spin-on suction filter can be added, and are useful to give an extra protection to the suction pump.

  4. All SE off-line oil cleaners are fitted with M-series 3μ absolute filter elements (beta ratio ß3 = 1000).

  5. Low running cost, easy installation & maintenance.

  6. Also available for water glycol fluids with coated housing and WG element.

Typical applications

  1. Plastic Injection moulding machines

  2. Die-casting machines, metal working machines, like bending-, cutting-, punching machines.

  3. Mobile hydraulic equipment

  4. All hydraulic systems fitted with proportional or servo-valves, and other high-tech hydraulic equipment., requiring optimum oil cleanliness.

View data sheet recommended cleanliness

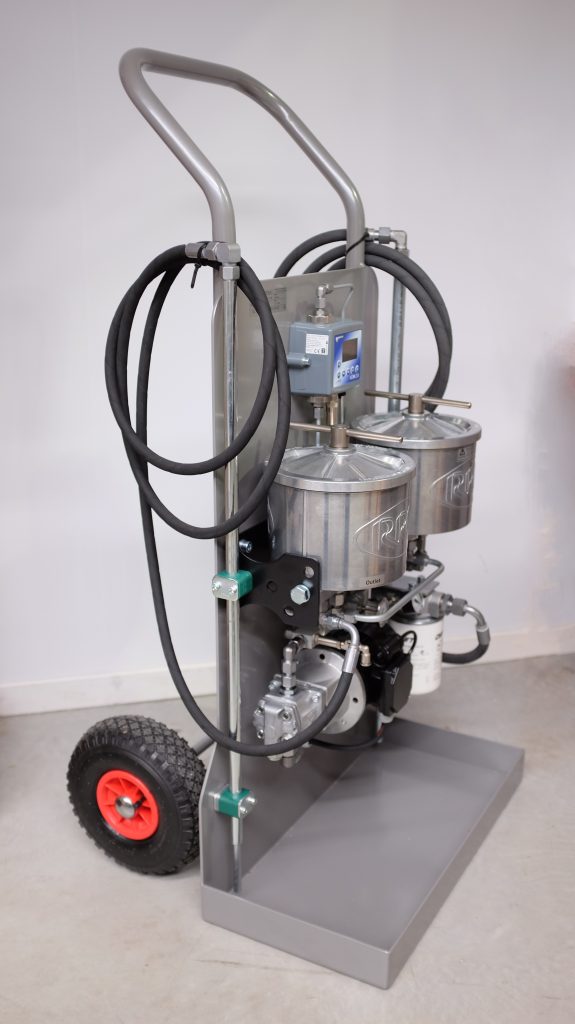

Mobile version

A mobile oil cleaner is perfect for your service & maintenance activities or for filtering new fresh oil.

We built a very handy mobile rig that can be used for a big variety of applications and service tasks.

We can also supply this SE-mobile unit fitted with an automatic Particle Counter.

CONNECT – CHECK – CLEAN!

View data sheet SE-Mobile

SE-specials: flexible Setup

A SE100E and most of the bigger models, can be ordered for horizontal installation (BH-version) or for vertical, wall-mount installation (WH-version).
